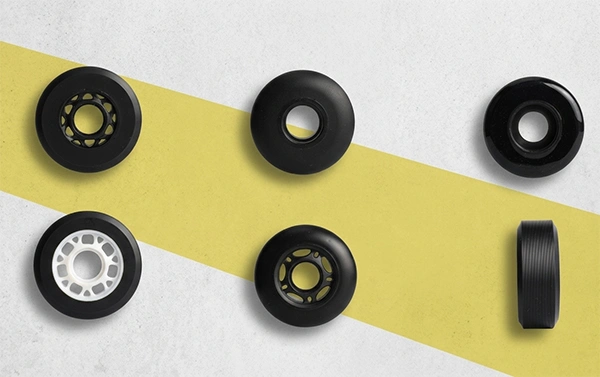

Pilates Reformer & Gym Equipment Replacement Wheels
Pilates equipment wheels are specially developed for reformers, core training equipment, rehabilitation systems, and other fitness machines that rely on repeated sliding and rolling movement during use. Instead of focusing only on basic rolling performance, we design these wheels around long-term training conditions where stability, quieter movement, rebound recovery, and continuous load support all matter.
To improve long-term reliability, the wheel core and PU outer layer use a more stable bonding structure that helps reduce debonding between the PU tread and wheel core during repeated movement, uneven loading, and frequent start-stop motion. The PU formula and curing process have also been optimized to reduce compression deformation caused by prolonged loading or transportation pressure, allowing the wheel to recover its shape more quickly after unloading and maintain a smoother rolling feel during use.
- PU outer layer: TDI, MDI
- Wheel core materials: PP, PC, PBT, PC+PBT, TPU + fiberglass, nylon, and aluminum alloy
Designed to maintain smoother rolling and more stable movement under repeated daily use and continuous equipment loading.
- SHR (Super High Rebound)
- HR (High Rebound)
- MR (Medium Rebound)
- LR (Low Rebound)
- Standard (Normal Rebound)
- PU casting process
- Injection molding process
48×18mm, 56×24mm, 58×24mm, 58.5×24mm, 62×24mm, 64×24mm, 68×24mm, 70×24mm, 76×24mm
- T-core structure
- Five-star core
- Multi-hole core
- Full PU wheel design
- Other customized wheel core structures available
We manage the entire production process in-house, from product development and mold engineering to injection molding, PU casting, printing, and finished wheel assembly. With dedicated engineering, production, and quality control departments working together throughout manufacturing, the company is able to maintain stable production quality across large-volume orders.
Our quality control process includes abrasion testing, aging tests, and dynamic load testing before shipment. The materials used also comply with international environmental standards, helping ensure more consistent quality from batch to batch.
- Size: 58×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 70×24/68×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 70×24/68×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 70×24/68×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 48×18mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 68×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 76×24/70×24/68×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 58.5×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 58×24/56×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
- Size: 70×24/68×24/64×24/62×24mm
- Hardness: 85A
- Material: MDI+PTMG/PU+PP
