Light Duty Polyurethane Caster
Request a Quote

Light Duty Polyurethane Caster

Load Capacity 30–100kg/66–220lbs

Light-duty polyurethane casters work well for office furniture, medical equipment, carts, and other products that need quieter and smoother movement during daily use. With a single-wheel load capacity ranging from 30kg to 100kg, these casters are commonly used on office furniture, medical equipment, display fixtures, storage systems, carts, and other light industrial applications.

The caster uses a polyurethane wheel surface matched with PP, nylon, or metal wheel cores, together with steel or stainless-steel brackets selected according to different usage conditions. The PU wheel helps reduce rattling and vibration during movement. So, the carts, furniture, and equipment equipped with PU caster wheels feel noticeably smoother and quieter in daily use. It also rolls more gently across indoor flooring surfaces such as wood, tile, and epoxy floors, are less likely to leave visible marks and surface wear over time. These casters are widely used in offices, medical spaces, retail fixtures, and other indoor equipment.

Customization Options & Specifications

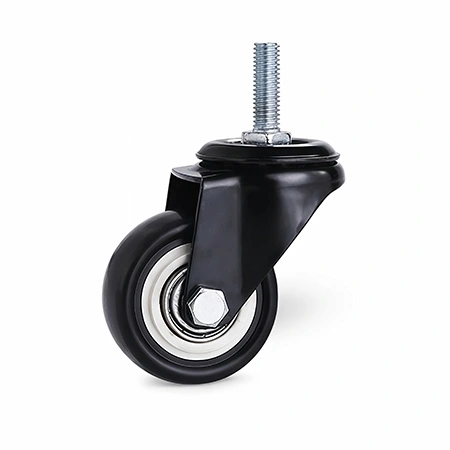

Stem Caster
Stem Caster
  • Mounting method: Threaded stem
  • Load capacity (single wheel): 30-100Kg
  • Wheel diameter: 40mm-100mm
  • Swivel / Brake: Swivel without brake
  • Mounting hole spacing: 8×25mm, 10×25mm, 12×30mm
  • Color: Customizable

All specifications above can be customized according to customer requirements.

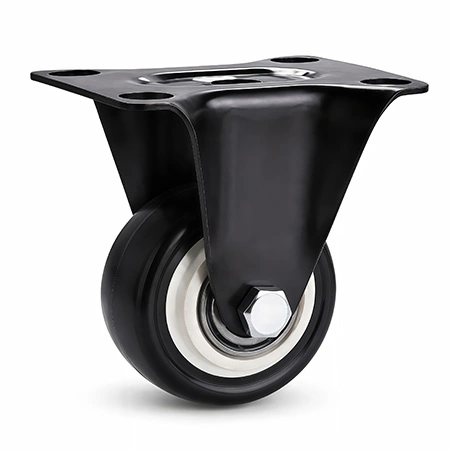

Rigid Plate Caster
Rigid Plate Caster
  • Mounting method: Mounting plate
  • Load capacity (single wheel): 30-100Kg
  • Wheel diameter: 40mm-100mm
  • Swivel / Brake: Rigid without brake
  • Mounting hole spacing: 8×25mm, 10×25mm, 12×30mm
  • Color: Customizable

All specifications above can be customized according to customer requirements.

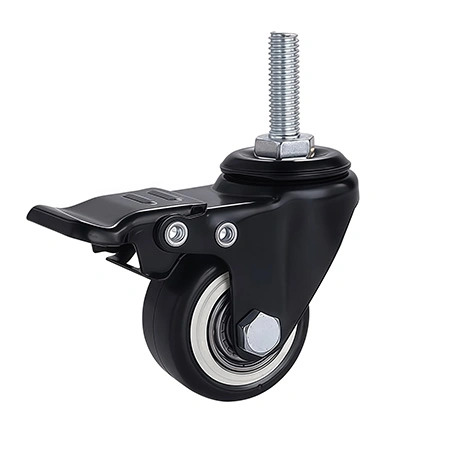

Stem Caster with Brake
Stem Caster with Brake
  • Mounting method: Threaded stem
  • Load capacity (single wheel): 30-100Kg
  • Wheel diameter: 40mm-100mm
  • Swivel / Brake: Swivel full brake
  • Mounting hole spacing: 8×25mm, 10×25mm, 12×30mm
  • Color: Customizable

All specifications above can be customized according to customer requirements.

Plate Caster with Brake
Plate Caster with Brake
  • Mounting method: Mounting plate
  • Load capacity (single wheel): 30-100Kg
  • Wheel diameter: 40mm-100mm
  • Swivel / Brake: Rigid full brake
  • Mounting hole spacing: 8×25mm, 10×25mm, 12×30mm
  • Color: Customizable

All specifications above can be customized according to customer requirements.

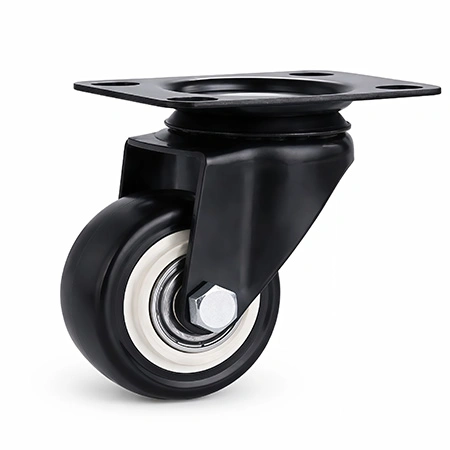

Swivel Plate Caster
Swivel Plate Caster
  • Mounting method: Mounting plate
  • Load capacity (single wheel): 30-100Kg
  • Wheel diameter: 40mm-100mm
  • Swivel / Brake: Swivel without brake
  • Mounting hole spacing: 8×25mm, 10×25mm, 12×30mm
  • Color: Customizable

All specifications above can be customized according to customer requirements.

Advantages
Quieter movement
Rolling noise is noticeably lower compared with standard nylon wheels, making them more suitable for indoor and everyday use.
Less likely to mark floors
Works well on wood flooring, tile, epoxy floors, and other finished indoor surfaces.
Balanced rolling feel
Moves more smoothly than hard plastic wheels while offering better wear resistance than traditional rubber wheels.
Flexible appearance customization
Available in different colors, transparency levels, and visual styles to match various product designs.
Good resistance to oil and aging
Maintains more stable long-term performance under different working conditions compared with conventional rubber materials.
Applications
Baby cribs Cabinets Coffee tables Storage boxes Storage cabinets Supermarket display racks Retail shelving Mobile display cabinets POP display fixtures
Applications
Applications
Applications
Customization Process
  1. 01

    Customers provide customization requirements, including hardness, size, color, wheel structure, and application details.

  2. 02

    The engineering team evaluates the project and provides customization recommendations while confirming sample specifications.

  3. 03

    Customized samples are produced for testing and customer approval before mass production begins.

  4. 04

    After sample confirmation, bulk production and quality inspection are carried out to ensure stable quality and on-time delivery.

Founded in 1997, Zhong Liang is a trustworthy manufacturer specializing in custom polyurethane wheels, rigid and swivel casters. With over 20 years of industry expertise, we serve global customers across the sports, luggage, fitness equipment, and industrial sectors. Our 20,000-square-meter manufacturing facility incorporates engineering, mold design, injection molding, polyurethane casting, and rigorous quality control—allowing us to achieve a daily output of 176,000 units and an annual capacity of 50,000,000. We offer comprehensive OEM and ODM solutions, tailoring every aspect from material formulation to custom design to ensure our wheels and casters perfectly align with your performance and aesthetic requirements.
